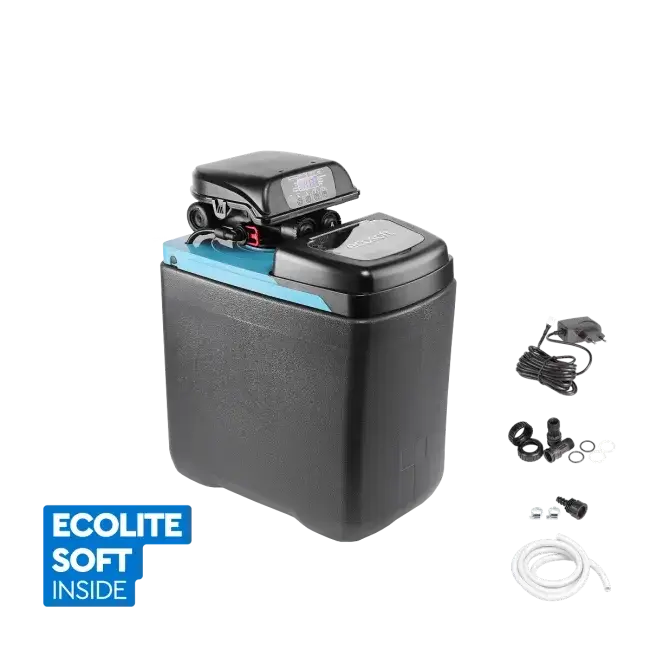

Compact water softening station, FILTRO Blue 150, Clack DV valve, 15 liters resin, 54 cm height, 1.5 m3/h flow rate, 2-4 persons

Discover Ecosoft Core 150, the ultra-compact water softener designed specifically for apartments and homes with limited space. With only 54 cm in height and an elegant design, this cabinet-type softening station provides reliable protection against limescale, extending the life of your appliances and improving everyday comfort – from softer laundry to cleaner dishes. Ideal for families of up to 4 people, Core 150 is the smart solution that combines efficiency with space savings.

Key benefits

• Ultra-compact – only 15 liters of resin and reduced dimensions, perfect for small apartments
• Reduces water hardness and extends the lifespan of household appliances
• Ideal for families of up to 4 members
• Flexible installation, suitable even under the sink (sink cabinet)
• Durable, scratch-resistant body with high-performance Clack DV valve
• No pre-filter required and minimal maintenance needed
• Integrated mixing valve for adjusting water hardness

How it works

Core 150 uses the ion exchange resin filtration method (Ecosoft EcoliteS), an efficient process that removes water hardness. The system operates in 1 filtration stage and is equipped with a Clack DV 1" control valve, with time/volume-based regeneration, factory pre-set for immediate use.

Technical specifications

• Brand: Ecosoft
• Product code (SKU): ECOSOFT-CORE-150
• EAN: 6426887022449
• MPN: FU1016CABDVUP
• Product type: Cabinet station
• Color: Black
• Material: BPA Free Plastic
• Filter media volume: 15 liters
• Filtration grade: 20 microns
• System dimensions: 27 x 43 x 54 cm
• Intended for: Whole house
• Estimated lifespan: 10 years
• Certifications: CE, Water Quality, NSF

Performance and consumption

• Filtered water flow rate: 1.5 m³/hour
• Softening capacity: 2.4 m³ @ 250 ppm CaCO₃
• Pressure drop: 0.5 bar
• Working pressure: 2-6 bar
• Regeneration duration: 80-110 minutes
• Salt consumption: 1.8 kg / regeneration
• Water consumption: 0.1 m³ / regeneration
• Brine tank volume: 16 liters
• Filtration capacity: Variable depending on water hardness

Control valve

• Control valve: Clack DV 1"
• Valve type: Time/volume-based regeneration
• Pre-set valve: Yes
• Valve display menu: EN
• By-pass: No, but can be added separately

Inlet water requirements

• Water type: Mains water and well water
• Usage: Cold water
• Temperature: 4-38 °C
• pH: 6.5-8.5
• Water hardness: < 750 mg/L CaCO₃
• Chlorine: < 0.5 ppm
• Total iron: < 0.2 mg/L
• Manganese: < 0.05 mg/L
• TMC: < 50 CFU/100 ml

Installation

• Installation time: under 60 minutes
• Installation difficulty: Medium (30-60 min)
• Professional installation: Yes, required
• Installation location: Utility room or sink cabinet
• Inlet connection: 1 inch
• Brine hose: 3/8 inch (9 mm)
• Drain connection: Yes
• Electrical connection: 220-240V @ 50-60 Hz, 220V outlet

Usage recommendations

For proper operation, always keep the salt level in the brine tank above the water level at all times. We recommend keeping the tank approximately two-thirds full of salt. The frequency of refilling depends on water hardness and daily consumption, but for most households a check every 2-4 weeks is sufficient. Important: never let the salt run out completely, as this can stop the regeneration process and reduce softening efficiency.
